Bucket cylinder – installation (1)
2.03.4 · TAIKON KT18 Pro (D722) · 5 items

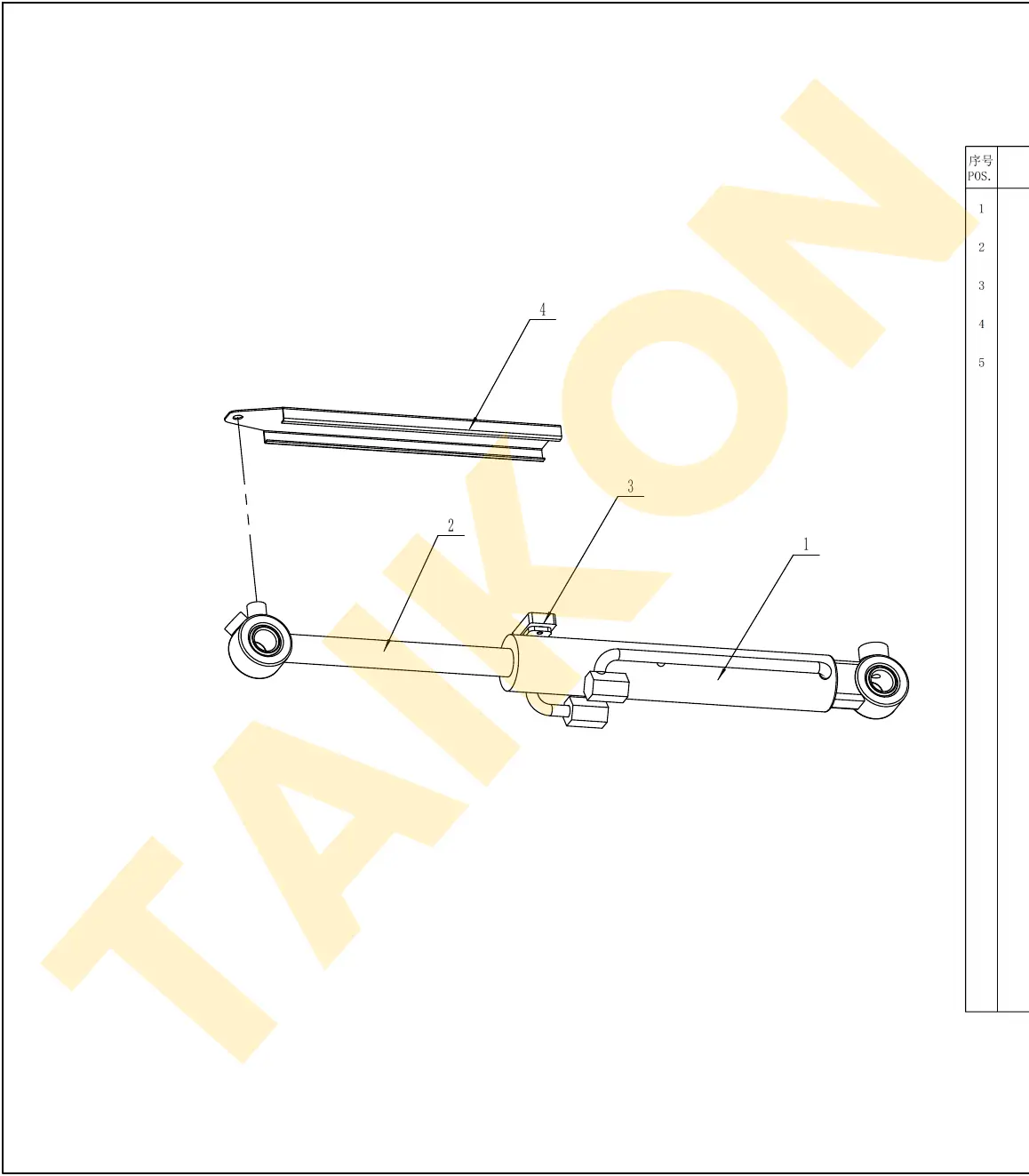

Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Cylinder tube assembly (bucket cylinder)TK-32-0008 | 1 | |
| 2 | Piston rod assembly (bucket cylinder)TK-32-0009 | 1 | |
| 3 | Slide blockTK-52-0009 | 1 | |
| 4 | Cylinder guard plateTK-62-0036 | 1 | |
| 5 | Clamp 15 mmTK-81-0011 | 2 |
