Arm (dipper) cylinder
2.03.0 · TAIKON KT18 Pro (D722) · 5 items

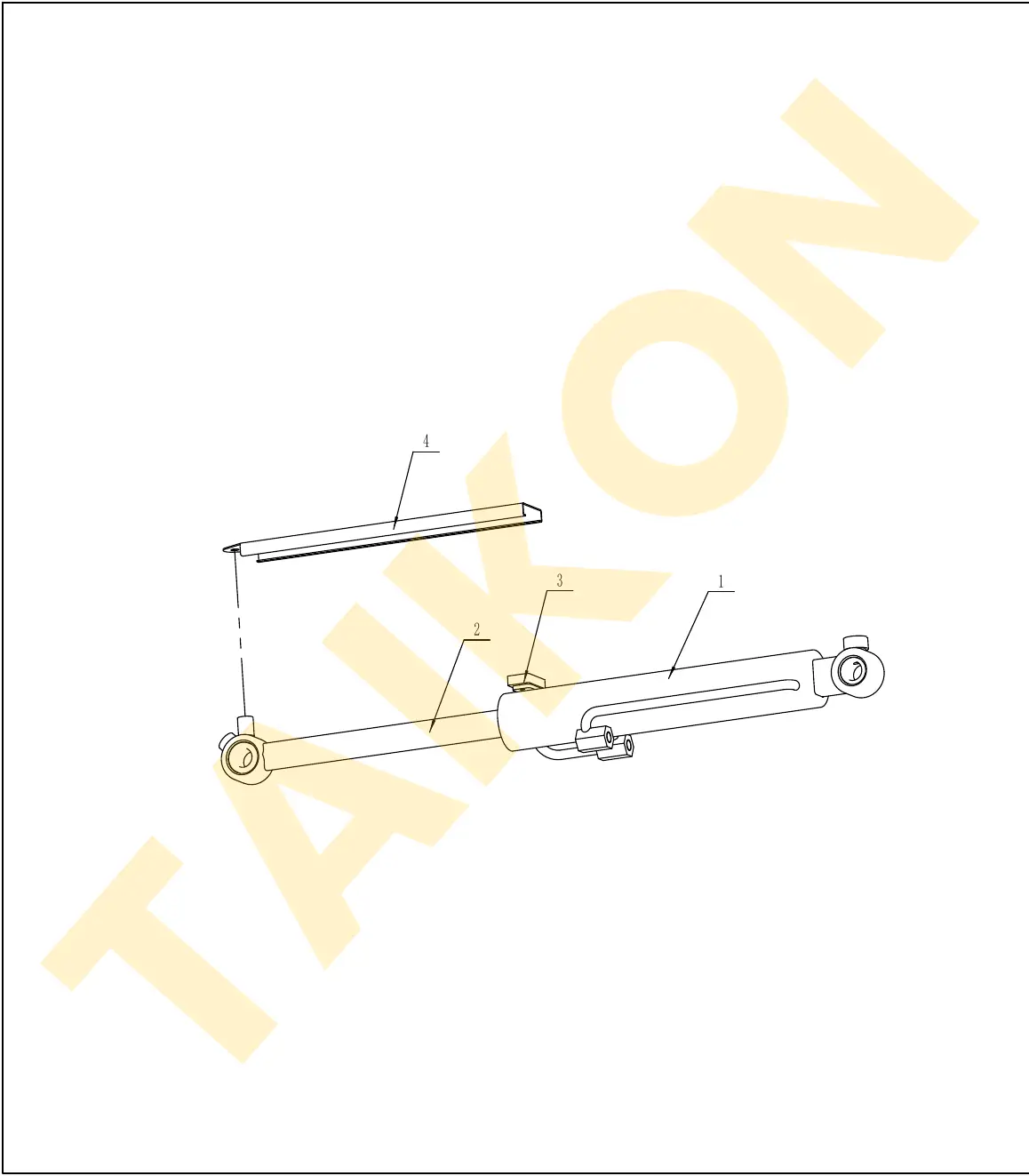

Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Cylinder tube assembly (arm cylinder)TK-32-0005 | 1 | |
| 2 | Piston rod assembly (arm cylinder)TK-32-0006 | 1 | |
| 3 | Slide blockTK-52-0009 | 1 | |
| 4 | Cylinder guard plateTK-51-0003 | 1 | |
| 5 | Clamp 15 mmTK-81-0011 | 2 |
