Boom & boom cylinder – installation
2.02.1 · TAIKON KT18 Pro (D722) · 8 items

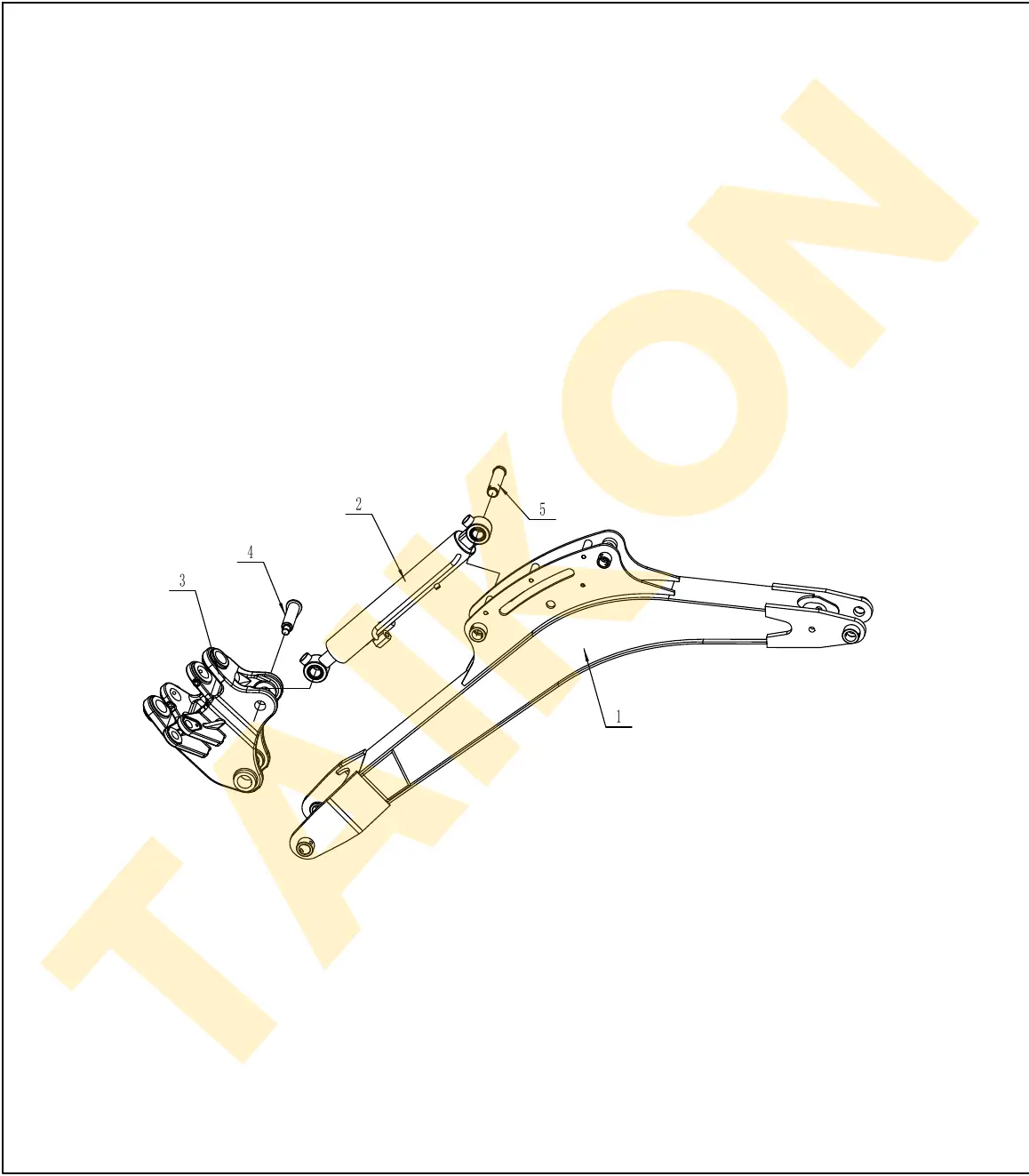

Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Boom (welded)TK-51-0002 | 1 | |
| 2 | Boom cylinderTK-32-0004 | 1 | |
| 3 | Boom swing bracket (cast)TK-51-0001 | 1 | |
| 4 | Pin 2TK-52-0003 | 1 | |
| 5 | Pin 2TK-52-0008 | 1 | |
| 6 | LED work light (9 LED)TK-71-0008 | 1 | |
| 7 | Work light bracketTK-71-0009 | 1 | |
| 8 | Cable grommet Ø24TK-81-0012 | 1 |
