Arm & arm cylinder – installation
2.03.1 · TAIKON KT18 Pro (D902) · 8 items

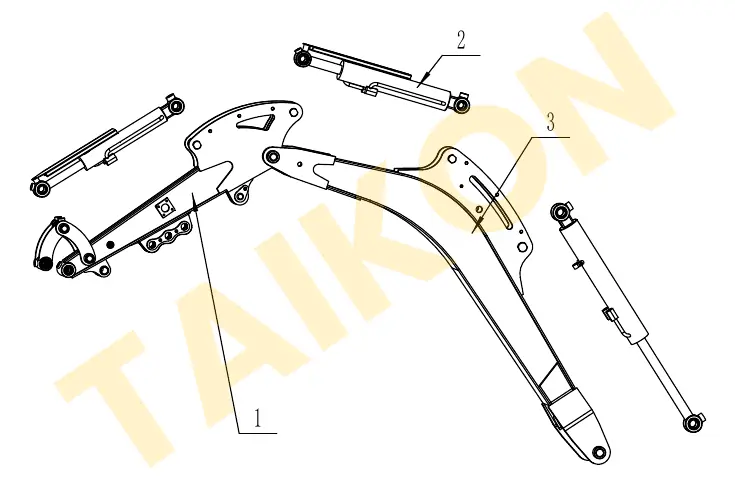

Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Arm (dipper stick)TK-51-0004 | 1 | |
| 2 | Arm cylinderTK-32-0007 | 1 | |
| 3 | Boom (welded)TK-51-0002 | 1 | |
| 4 | Work light bracketTK-71-0009 | 1 | |
| 5 | Shut-off valveTK-31-0008 | 1 | |
| 6 | Fan guardTK-12-0003 | 3 | |
| 7 | Slide blockTK-52-0009 | 2 | |
| 8 | Clamp 15 mmTK-81-0011 | 2 |
