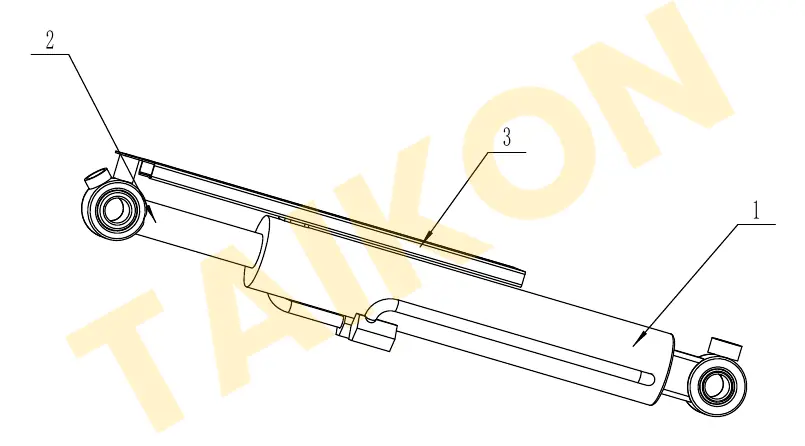

Arm (dipper) cylinder
2.03.0 · TAIKON KT18 Pro (D902) · 4 items
Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Cylinder tube assembly (arm cylinder)TK-32-0005 | 1 | |
| 2 | Piston rod assembly (arm cylinder)TK-32-0006 | 1 | |
| 3 | Cylinder guard plateTK-51-0003 | 1 | |
| 4 | Arm cylinderTK-32-0007 | 1 |
