Hoses: pump
5.08 · TAIKON KT16 Pro

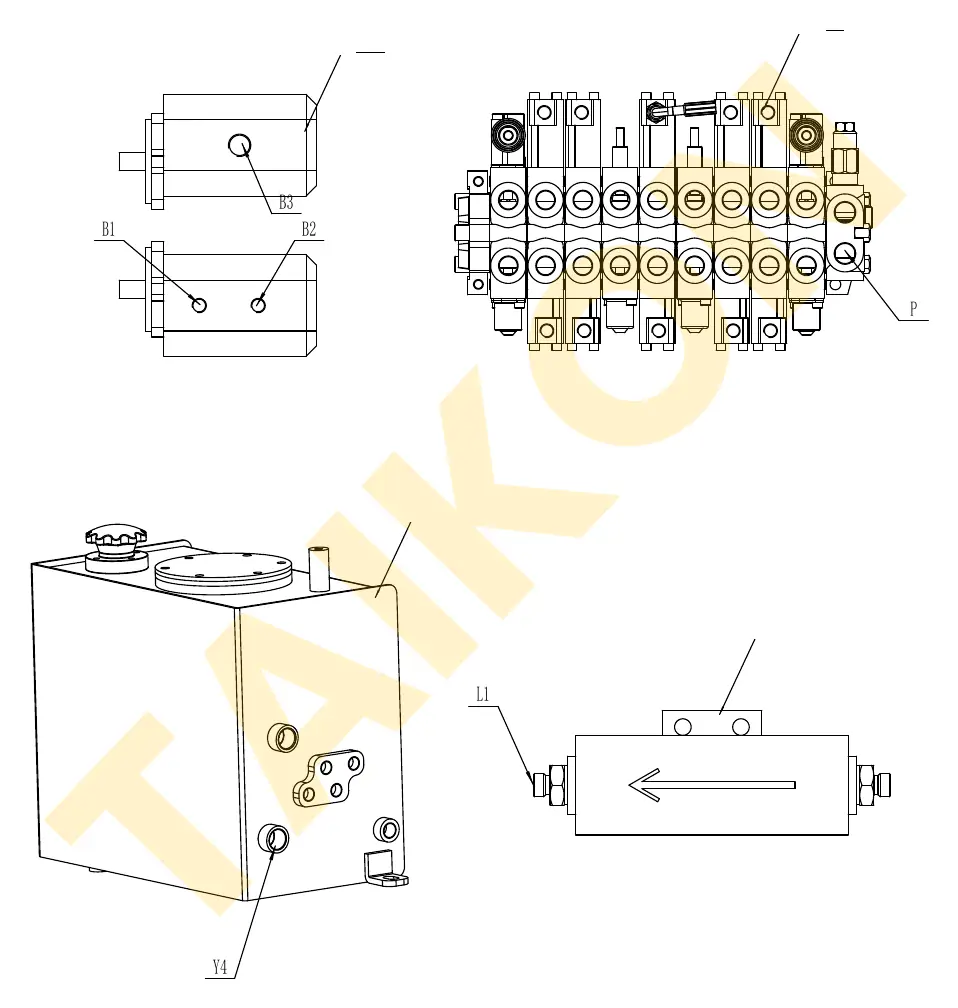

Tap a port label (e.g. B6) on the drawing to find its hose and adapters.
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 1 | B1-P | 490 | 13-2 | 18H Straight / 18H Bend | 1 |
| 2 | Y4-B3 | 520 | 16-1 | 22H Bend / 22H Straight | 1 |
| 3 | B2-L1 | 400 | 6-1 | 14H Bend / 14H Straight | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 1 | B1: 1CB18-08 | P: 1CM18-22 + 2C9-18 |
| 2 | Y4: — | B3: 1CB22-12 |
| 3 | B2: 1CB14-08 + 2C9-14 | L1: 1CM14-18 + 2C9-14 |
