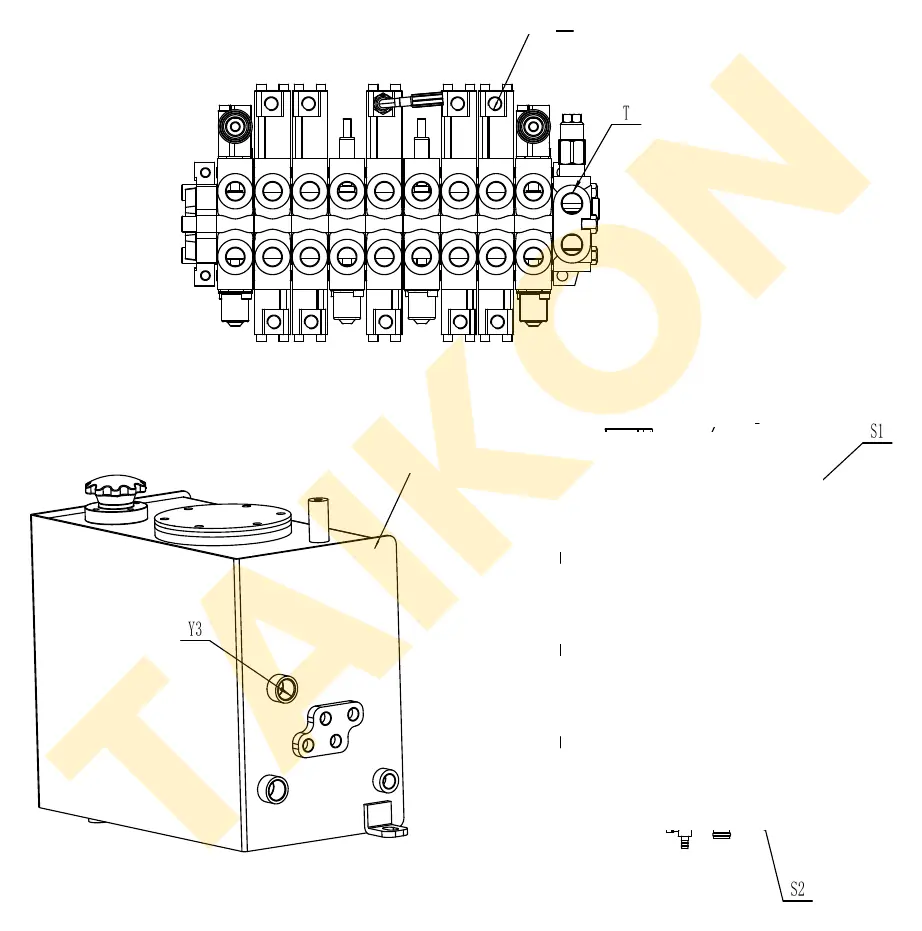

Hoses: hydraulic oil cooler
5.07 · TAIKON KT16 Pro
Tap a port label (e.g. B6) on the drawing to find its hose and adapters.
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 1 | S1-Y3 | 1020 | 13-1 | 22H Straight / 22H Bend | 1 |
| 2 | T-S2 | 885 | 13-1 | 18H Bend / 22H Straight | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 1 | S1: 1CM-22 | Y3: 1CM-22 |
| 2 | T: 1CM18-22 | S2: 1CM-22 |
