Hoses: gear pump
5.07 · TAIKON C12

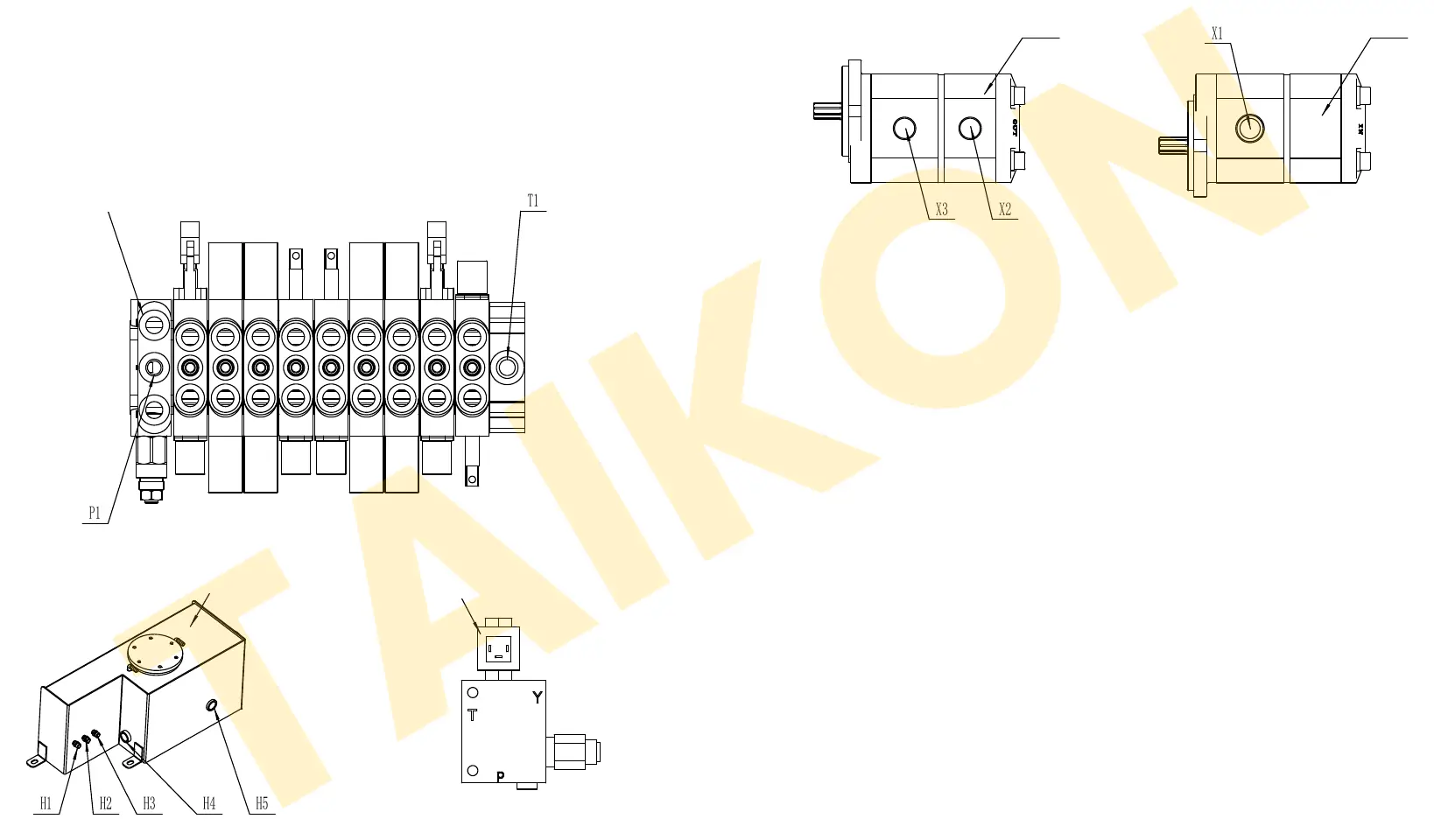

Tap a port label (e.g. B6) on the drawing to find its hose and adapters.
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 1 | X1-H4 | 750 | 16I | 26H Straight / 26H Slant · protective sleeve | 1 |
| 2 | X2-P | 850 | 6I | 14H Straight / 14H Bend | 1 |
| 3 | X3-P1 | 770 | 10II | 18H Straight / 18H Bend · protective sleeve | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 1 | X1: 1CB-26-12 + 2C9-26 | H4: 1CM-26 |
| 2 | X2: 1CB-14-08 + 2C9-14 | P: 1CB-14-04 + 2C9-14 (2nd fitting on P/P1 side printed in P.S. column) |
| 3 | X3: 1CB-18-08 | P1: 1CB-18-06 + 2C9-18 (2nd fitting on P/P1 side printed in P.S. column) |
