Front attachment – overview
2.00 · TAIKON C12 · 22 items

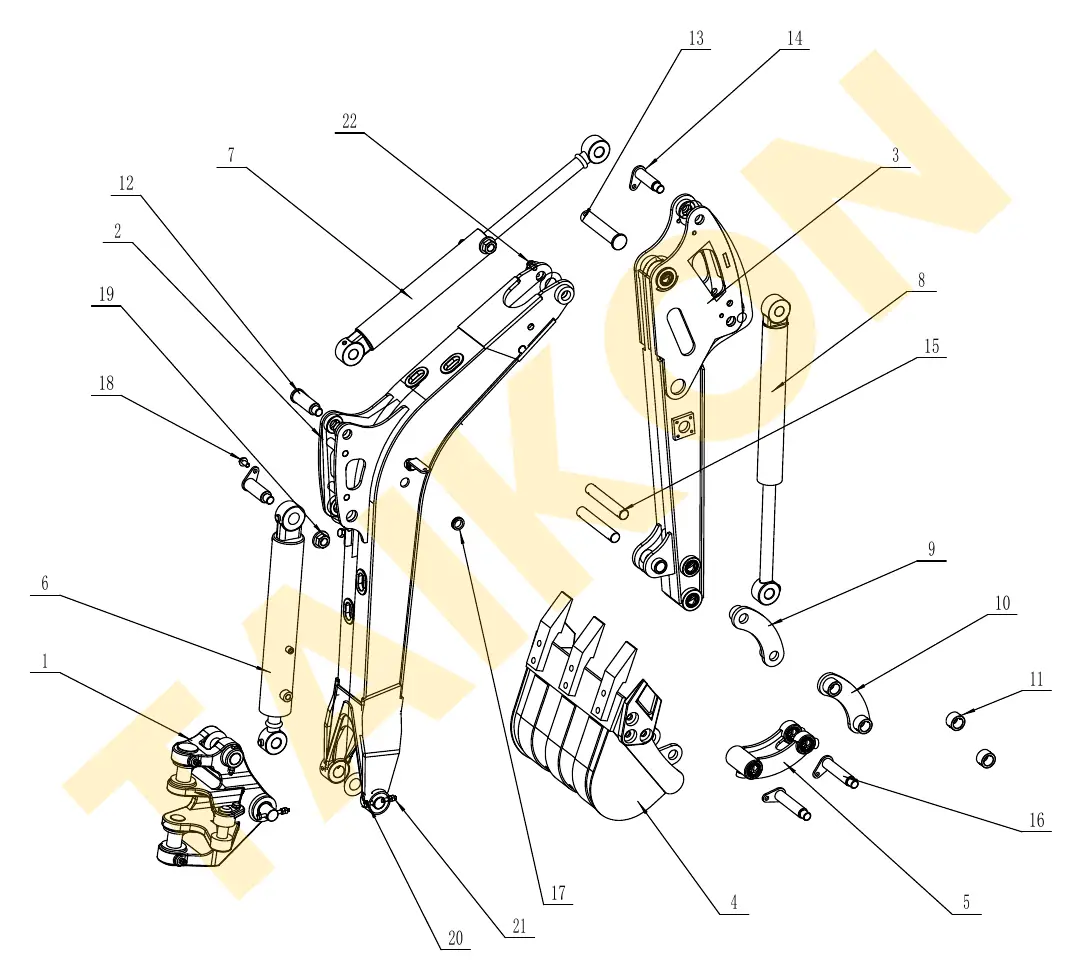

Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Boom swing bracket – installation kitTK-90-0194 | 1 | |
| 2 | Boom – installation kitTK-90-0195 | 1 | |
| 3 | Arm – installation kitTK-90-0196 | 1 | |
| 4 | Bucket – installation kitTK-90-0197 | 1 | |
| 5 | Bucket linkage – installation kitTK-90-0198 | 1 | |
| 6 | Boom cylinderTK-32-0013 | 1 | |
| 7 | Arm cylinderTK-32-0014 | 1 | |
| 8 | Bucket cylinderTK-32-0015 | 1 | |
| 9 | Bucket linkage rockerTK-51-0005 | 1 | |
| 10 | Bucket linkage rockerTK-51-0017 | 1 | |
| 11 | Collar ringTK-62-0178 | 2 | |
| 12 | Pin 1TK-52-0041 | 2 | |
| 13 | Pin 2TK-52-0042 | 1 | |
| 14 | Pin 1TK-52-0038 | 2 | |
| 15 | Pin 1TK-52-0012 | 2 | |
| 16 | Pin 5TK-52-0039 | 2 | |
| 17 | Cable grommet Ø24TK-81-0012 | 1 | |
| 18 | Hexagon flange bolt M10×20TK-81-0039 | 6 | |
| 19 | Flange lock nut with nylon insert M20TK-81-0078 | 6 | |
| 20 | Hexagon head bolt M8×80TK-81-0079 | 2 | |
| 21 | Hexagon head bolt M8×60TK-81-0080 | 6 | |
| 22 | Nut M8TK-81-0036 | 16 |
