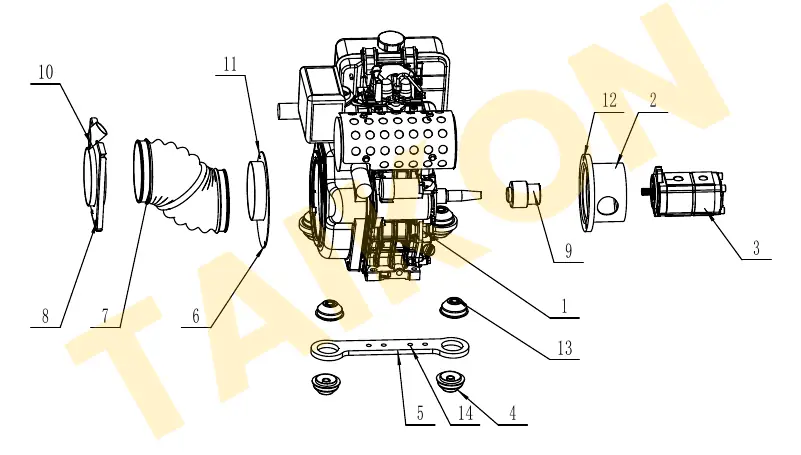

Engine
1.04 · TAIKON C12 · 14 items
Tap a number on the drawing to find the part in the list.
is shown on the drawing but the factory parts table does not list it. Send us a request and we will identify the part. Parts request →
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | EngineTK-11-0014 | 1 | |
| 2 | Flexible coupling (engine – pump)TK-11-0008 | 1 | |
| 3 | Gear pumpTK-31-0018 | 1 | |
| 4 | Engine mount (rubber damper)TK-11-0002 | 8 | |
| 5 | Engine mounting plate (welded)TK-11-0009 | 2 | |
| 6 | Mounting plateTK-62-0068 | 1 | |
| 7 | Corrugated hose (bellows)TK-13-0009 | 1 | |
| 8 | Air intake pipe bracketTK-62-0172 | 1 | |
| 9 | Flexible coupling (engine – pump)TK-11-0008 | 1 | |
| 10 | Hose clampTK-81-0040 | 2 | |
| 12 | Hexagon flange bolt M6×12TK-81-0019 | 4 | |
| 14 | Hexagon flange bolt M8×20TK-81-0014 | 6 | |
| 4 | Hexagon head bolt M12×100TK-81-0083 | 4 | |
| 7 | Hexagon flange bolt M10×40TK-81-0038 | 4 |
