Hoses: hydraulic tank
5.02 · TAIKON C10 · 2 items

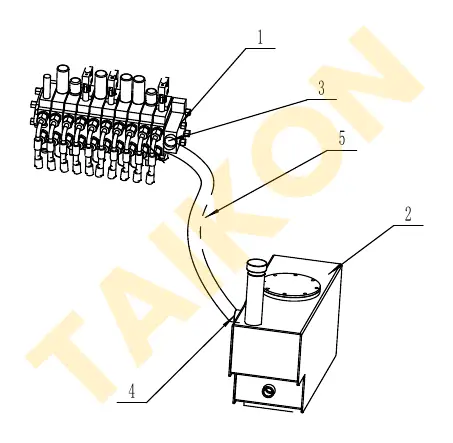

Tap a port label (e.g. B6) on the drawing to find its hose and adapters. Numbers on the drawing are hose and adapter positions from the tables below.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Main control valveTK-31-0012 | 1 | |
| 2 | Hydraulic oil tankTK-63-0010 | 1 |
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 5 | 600 | 13I | 22H Straight / 22H Skew · protective sleeve | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 3 | 1CB-22-08 | |
| 4 | 1CM-22-26 |
