Hoses: gear pump
5.01.2 · TAIKON C10 · 2 items

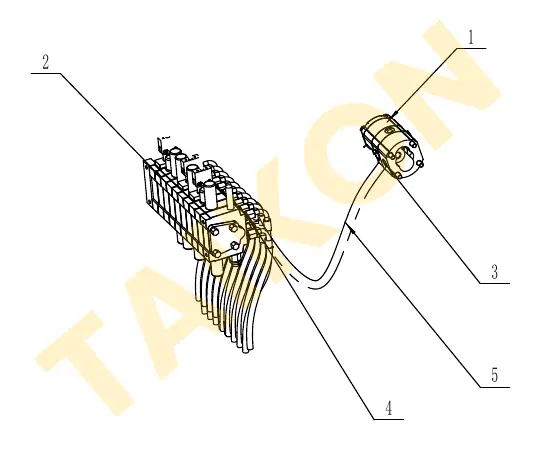

Tap a port label (e.g. B6) on the drawing to find its hose and adapters. Numbers on the drawing are hose and adapter positions from the tables below.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Gear pumpTK-31-0013 | 1 | |
| 2 | Main control valveTK-31-0016 | 1 |
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 5 | 1400 | 10II | 18H Bend / 18H Straight · protective sleeve | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 3 | 1CB-18-08 | |
| 4 | 1CB-18-06 |
