Grease lines
5.11 · TAIKON LT16 Pro

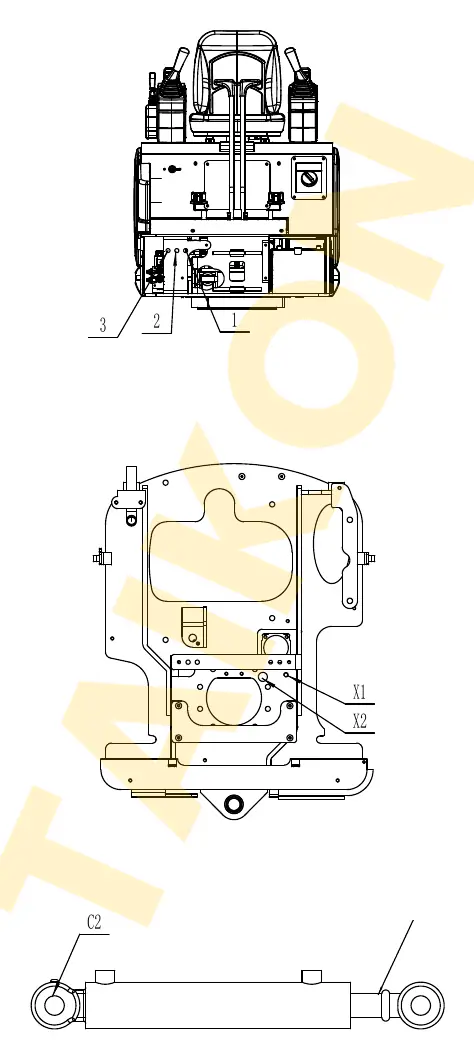

Tap a port label (e.g. B6) on the drawing to find its hose and adapters. Numbers on the drawing are hose and adapter positions from the tables below.
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 1 | 1 | 785 | 6-1 | 14H Angled / grease nipple | 1 |
| 2 | 2 | 740 | 6-1 | 14H Angled / grease nipple | 1 |
| 3 | 3 | 690 | 6-1 | 14H Bend / grease nipple | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 1 | 1: Butter Joint | X2: 1CM14-10 |
| 2 | 2: Butter Joint | X1: 1CM14-10 |
| 3 | 3: Butter Joint | C2: 1CM-14 |
