Hoses: dozer valve
5.06 · TAIKON LT16 Pro

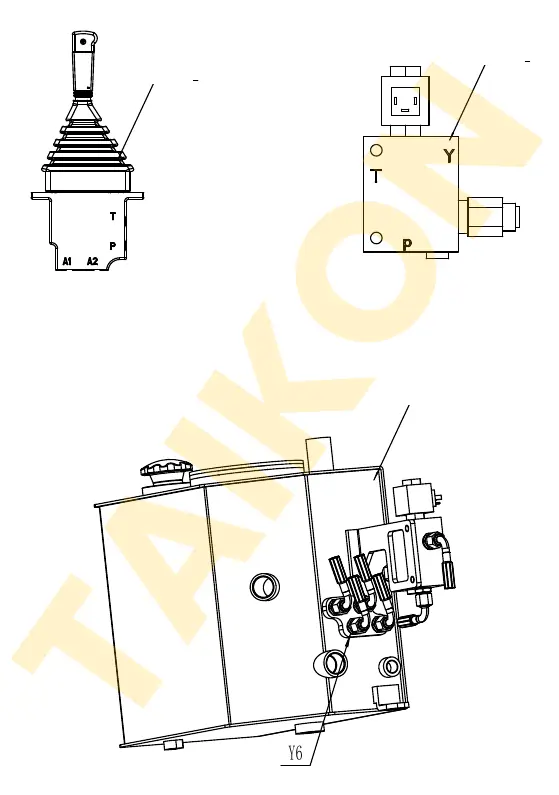

Tap a port label (e.g. B6) on the drawing to find its hose and adapters.
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 1 | (blade valve)T-Y6 | 890 | Φ5 pilot | 14H Straight / 14H Bend · at elbow protective sleeve 15cm | 1 |
| 2 | (blade valve)P-(pilot valve)P | 750 | Φ5 pilot | 14H Straight / 14H Bend · at elbow protective sleeve 15cm | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 1 | (blade valve)T: 1CB-14-04 | Y6: 1CB-14-04 |
| 2 | (blade valve)P: 1CB-14-04 | (pilot valve)P: 1CB-14-04 + 2C9-14 |
