Boom & boom cylinder – installation
2.02.1 · TAIKON LT16 Pro · 9 items

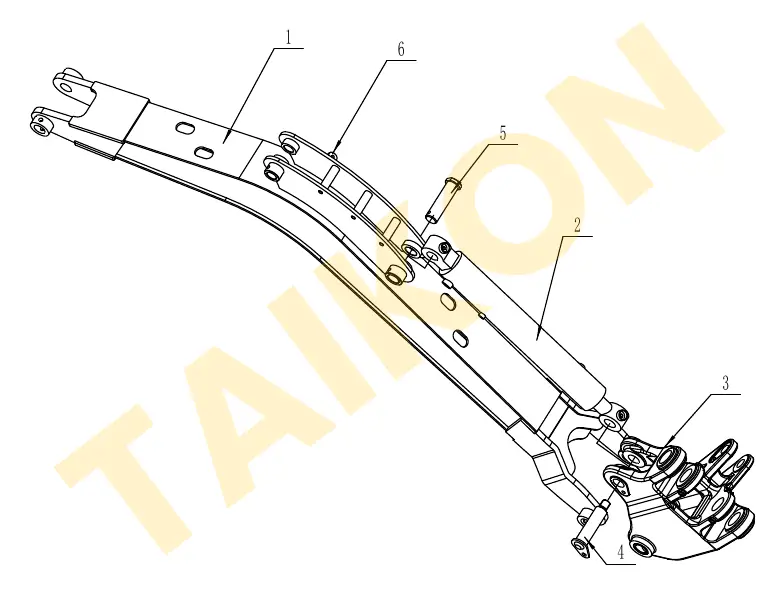

Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Boom (welded)TK-51-0015 | 1 | |
| 2 | Boom cylinderTK-32-0016 | 1 | |
| 3 | Boom swing bracket (cast)TK-51-0001 | 1 | |
| 4 | Pin 1TK-52-0028 | 1 | |
| 5 | Pin 2TK-52-0032 | 1 | |
| 6 | LED work light (9 LED)TK-71-0008 | 1 | |
| 7 | Backing plateTK-62-0109 | 4 | |
| 8 | Work light bracketTK-71-0009 | 1 | |
| 9 | Clamp 15 mmTK-81-0011 | 5 |
