Hoses: pilot joysticks
5.04 · TAIKON KT18 Pro (D722)

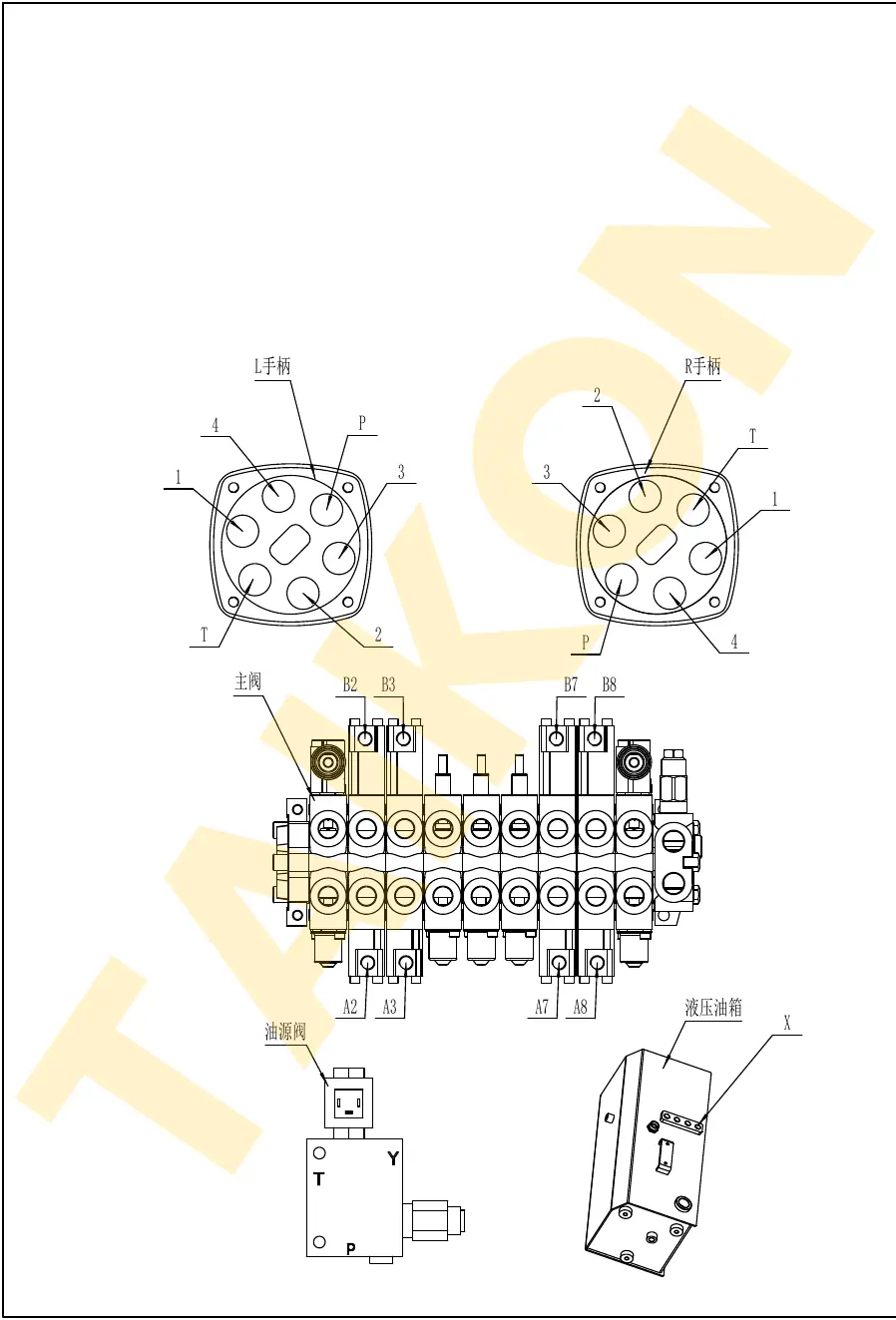

Tap a port label (e.g. B6) on the drawing to find its hose and adapters. Numbers on the drawing are hose and adapter positions from the tables below.
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 1 | Y-P | 1850 | Φ5 pilot | 14H Straight / 14H Slant · L | 1 |
| 2 | Y-P | 1480 | Φ5 pilot | 14H Straight / 14H Bend · R | 1 |
| 3 | T-4 | 1800 | Φ5 pilot | 14H Straight / 14H Slant · L | 1 |
| 4 | T-4 | 1180 | Φ5 pilot | 14H Straight / 14H Bend · R | 1 |
| 5 | B8-3 | 1430 | Φ5 pilot | 14H Straight / 14H Bend · R | 1 |
| 6 | A8-1 | 1115 | Φ5 pilot | 14H Straight / 14H Bend · R | 1 |
| 7 | B7-2 | 1480 | Φ5 pilot | 14H Straight / 14H Bend · R | 1 |
| 8 | A7-4 | 1115 | Φ5 pilot | 14H Straight / 14H Bend · R | 1 |
| 9 | B2-3 | 1850 | Φ5 pilot | 14H Straight / 14H Slant · L | 1 |
| 10 | B3-4 | 1850 | Φ5 pilot | 14H Straight / 14H Slant · L | 1 |
| 11 | A2-1 | 1400 | Φ5 pilot | 14H Straight / 14H Slant · L | 1 |
| 12 | A3-2 | 1400 | Φ5 pilot | 14H Straight / 14H Slant · L | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 1 | Y: 1CB-14-04 + BC-14 | P: 1CG-14-04JIS; P.S. L |
| 2 | Y: 1CB-14-04 + BC-14 | P: 1CG-14-04JIS; P.S. R |
| 3 | T: 1CG-14-04JIS | X: 1CM-14 + CC-14; P.S. L |
| 4 | T: 1CG-14-04JIS | X: 1CM-14 + CC-14; P.S. R |
| 5 | B8: 1CB-14-04(L27) | 3: 1CG-14-04JIS; P.S. R |
| 6 | A8: 1CB-14-04(L27) | 1: 1CG-14-04JIS; P.S. R |
| 7 | B7: 1CB-14-04(L27) | 2: 1CG-14-04JIS; P.S. R |
| 8 | A7: 1CB-14-04(L27) | 4: 1CG-14-04JIS; P.S. R |
| 9 | B2: 1CB-14-04(L27) | 3: 1CG-14-04JIS; P.S. L |
| 10 | B3: 1CB-14-04(L27) | 4: 1CG-14-04JIS; P.S. L |
| 11 | A2: 1CB-14-04(L27) | 1: 1CG-14-04JIS; P.S. L |
| 12 | A3: 1CB-14-04(L27) | 2: 1CG-14-04JIS; P.S. L |
