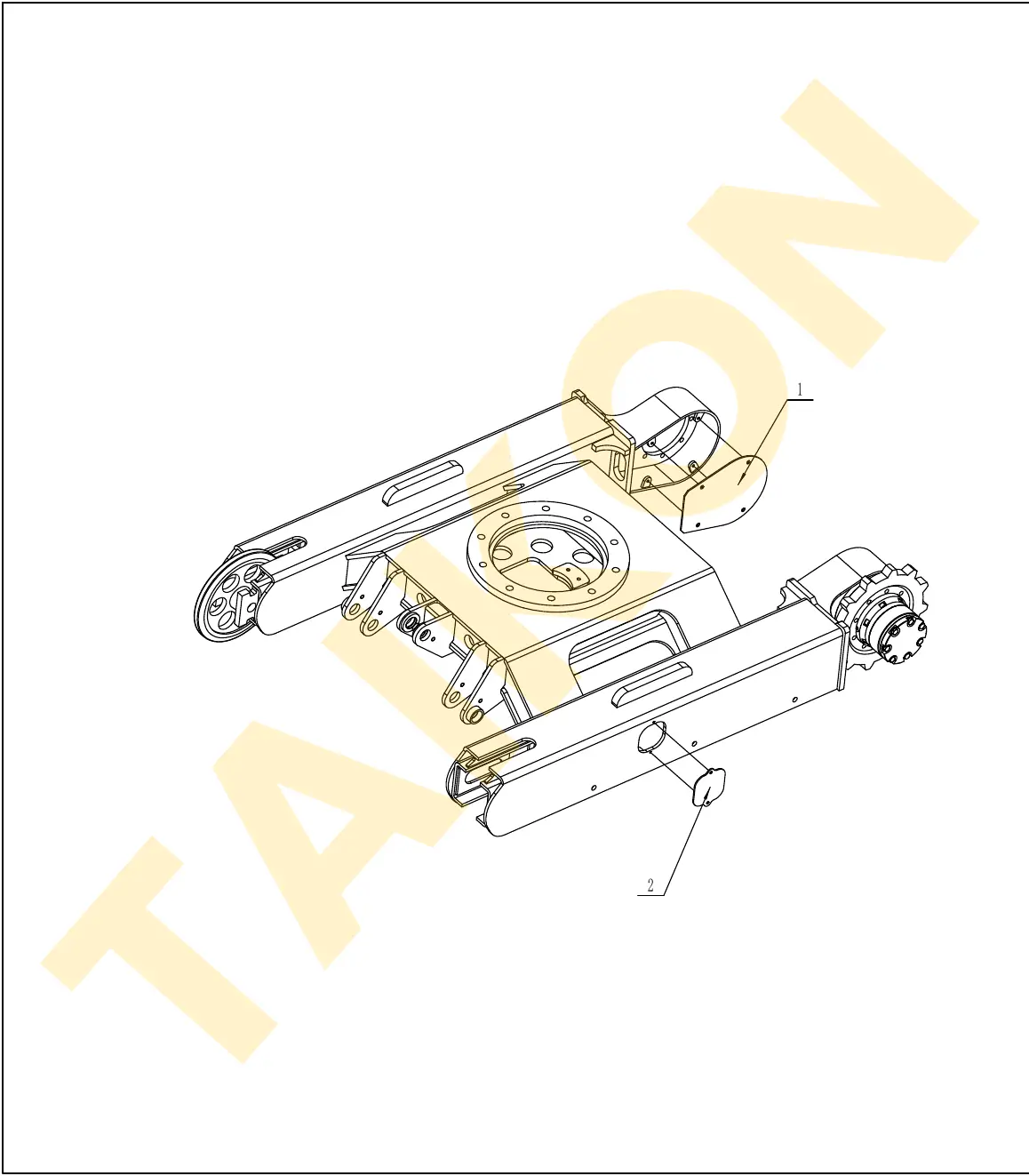

Undercarriage cover plate

3.04 · TAIKON KT18 Pro (D722) · 2 items

12

Tap a number on the drawing to find the part in the list.

Pos.	Description / Part no.	Qty
1	Travel motor coverTK-62-0039	2	Add
2	Side cover plateTK-62-0040	2	Add
