Boom swing bracket – installation
2.01.0 · TAIKON KT18 Pro (D722) · 6 items

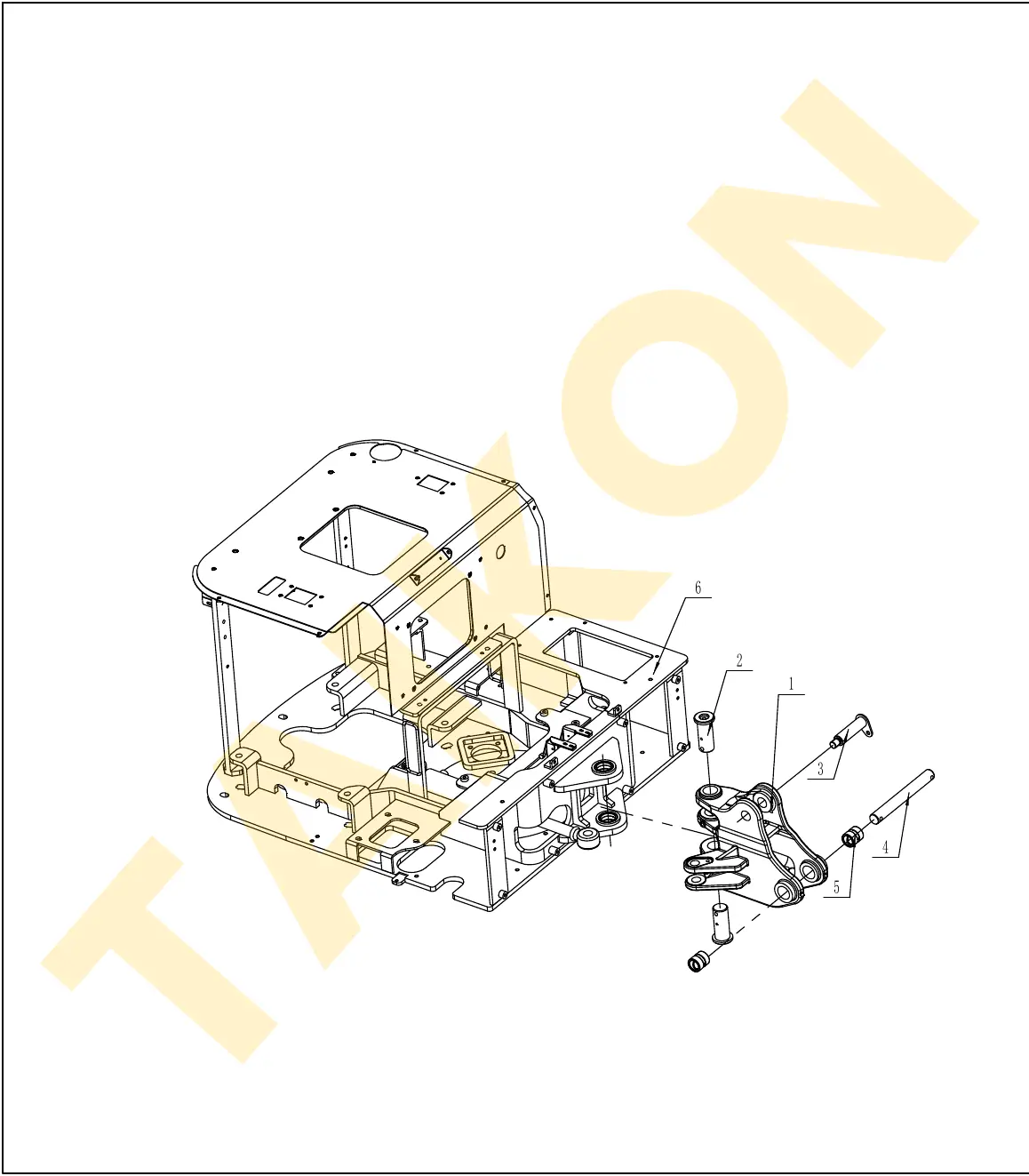

Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Boom swing bracket (cast)TK-51-0001 | 1 | |
| 2 | Pin 1TK-52-0002 | 2 | |
| 3 | Pin 2TK-52-0003 | 1 | |
| 4 | Pin 3TK-52-0004 | 1 | |
| 5 | Bushing 1TK-52-0005 | 2 | |
| 6 | Upper structure frame ReferenceTK-62-0001 | 1 |
