Hoses: shut-off valves
5.05 · TAIKON KT18 Pro (D902)

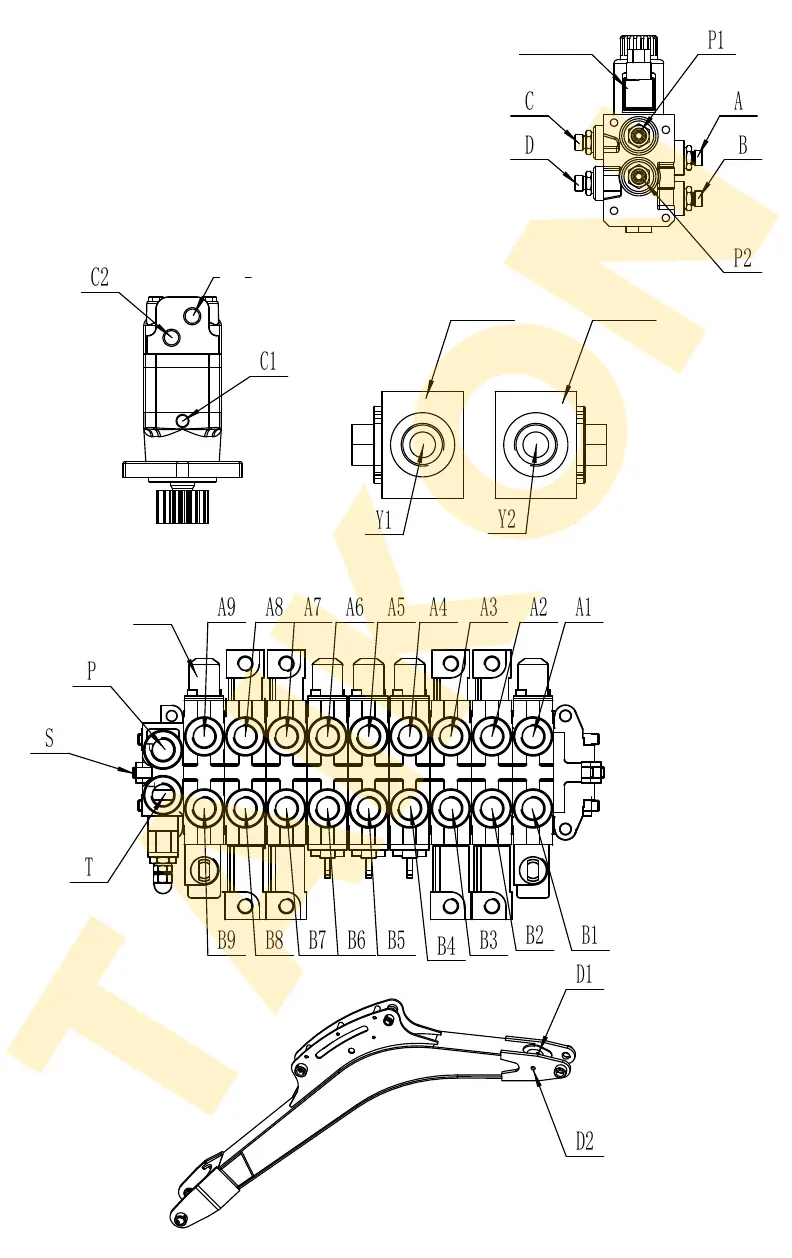

Tap a port label (e.g. B6) on the drawing to find its hose and adapters.
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 1 | B2-P2 | 1100 | 6II | 14H Straight / 14H Bend | 1 |
| 2 | A2-P1 | 1200 | 6II | 14H Straight / 14H Bend | 1 |
| 3 | A1-D1 | 2830 | 8II | 14H Straight / 14H Bend · protective sleeve | 1 |
| 4 | B1-D2 | 2890 | 8II | 14H Straight / 14H Bend · protective sleeve | 1 |
| 5 | D1-Y1 | 660 | 8II | 14H Straight / 14H Bend · spring guard | 1 |
| 6 | D2-Y2 | 660 | 8II | 14H Straight / 14H Bend · spring guard | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 1 | B2: 1CM-14-20 + 2C9-14 | P2: 1CB-14-08 + 2C9-14 |
| 2 | A2: 1CM-14-20 + 2C9-14 | P1: 1CB-14-08 + 2C9-14 |
| 3 | A1: 1CM-14-20 | D1: 6C9-14 |
| 4 | B1: 1CM-14-20 | D2: 6C9-14 |
| 5 | D1: 6C9-14 | Y1: 1CB-14-06 + 9C-14 + 1CB-14-06 |
| 6 | D2: 6C9-14 | Y2: 1CB-14-06 + 9C-14 + 1CB-14-06 |
