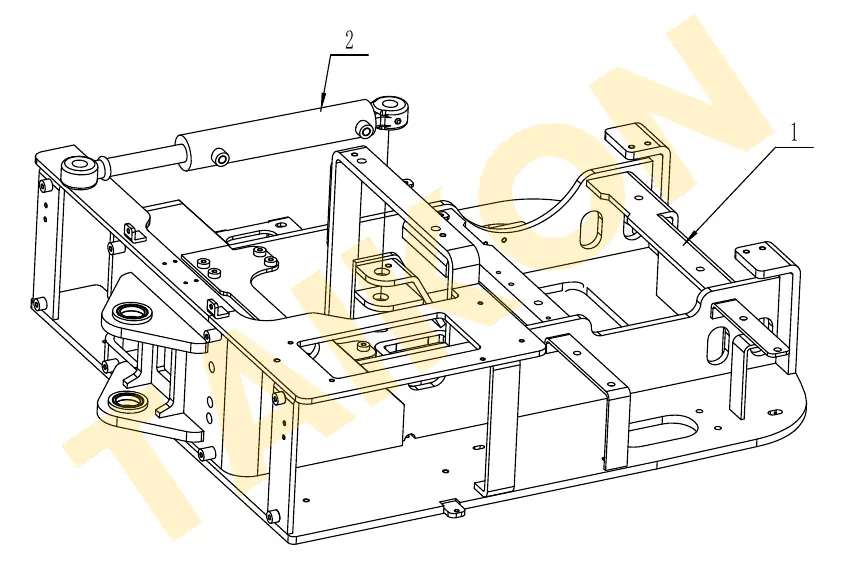

Boom swing cylinder – frame mounting
1.08.2 · TAIKON KT18 Pro (D902) · 2 items
Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Upper structure frame ReferenceTK-62-0182 | 1 | |
| 2 | Boom swing cylinderTK-32-0001 | 1 |
