Hoses: rotary joint – travel motors
5.01 · TAIKON KT16 Pro

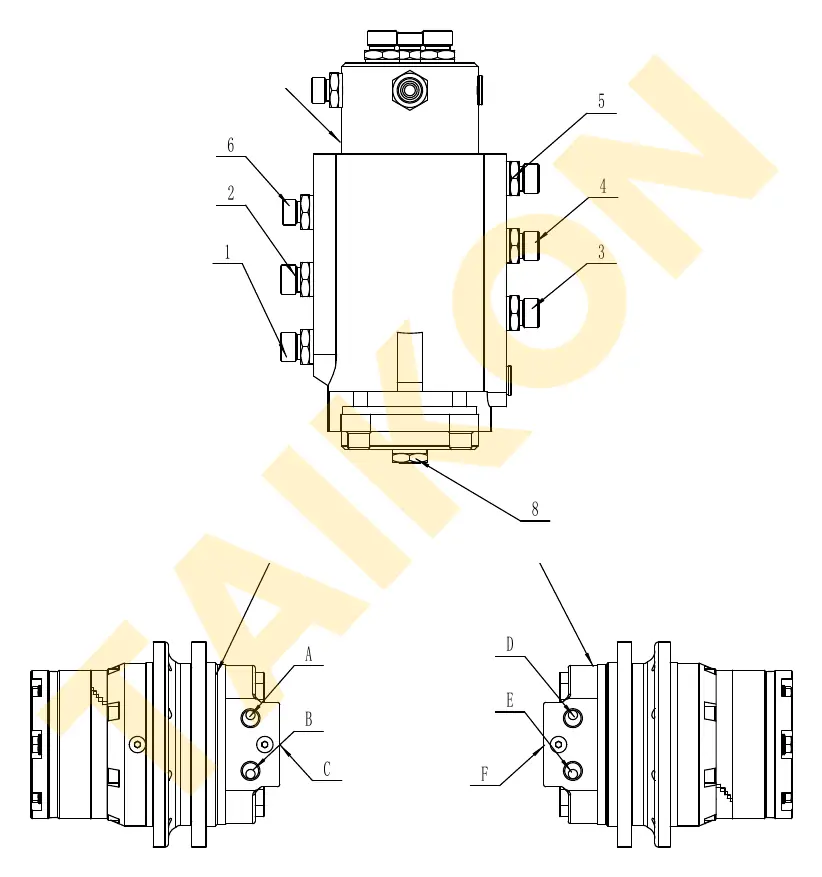

Tap a port label (e.g. B6) on the drawing to find its hose and adapters. Numbers on the drawing are hose and adapter positions from the tables below.
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 1 | 1-B | 660 | 8-2 | 16H Straight / 16H Angled · protective sleeve | 1 |
| 2 | 2-A | 680 | 8-2 | 16H Straight / 16H Angled · protective sleeve | 1 |
| 3 | 3-E | 660 | 8-2 | 16H Straight / 16H Angled · protective sleeve | 1 |
| 4 | 4-D | 680 | 8-2 | 16H Straight / 16H Angled · protective sleeve | 1 |
| 5 | 8-C/F | 650 | 6-1 | 14H Straight / 14H Angled · protective sleeve | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 1 | 1: 1CB-16-04 | B: 1CB-16-06 + 2C9-16 |
| 2 | 2: 1CB-16-04 | A: 1CB-16-06 + 2C9-16 |
| 3 | 3: 1CB-16-04 | B: 1CB-16-06 + 2C9-16 |
| 4 | 4: 1CB-16-04 | D: 1CB-16-06 + 2C9-16 |
| 5 | 8: 1CB-14-04 | C/F: 1CB-14-02 + 2C9-14 |
