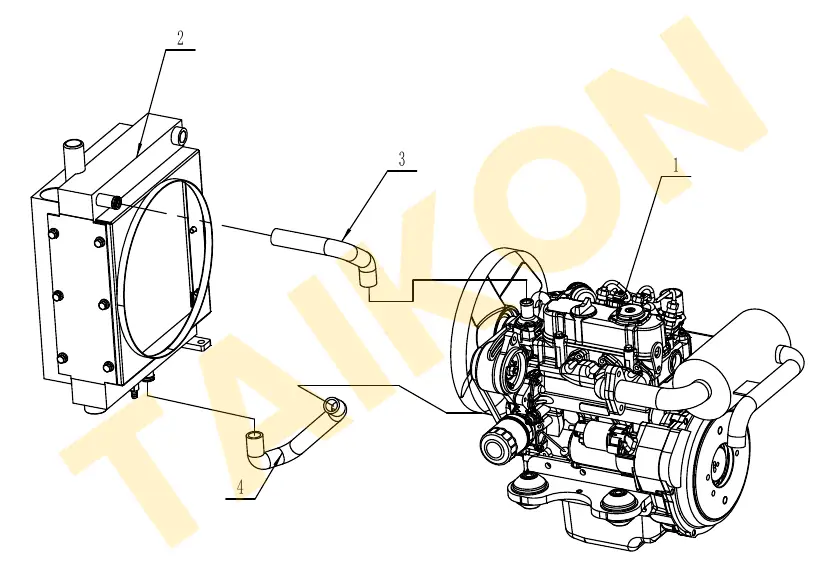

Coolant hoses (suction & return)
1.09.4 · TAIKON KT16 Pro · 5 items
Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Diesel engine Kubota D722 ReferenceTK-11-0001 | 1 | |
| 2 | Combination radiator (coolant / hydraulic oil)TK-12-0010 | 1 | |
| 3 | Coolant hose, return (upper)TK-12-0012 | 1 | |
| 4 | Coolant hose, suction (lower)TK-12-0013 | 1 | |
| 5 | Double-wire hose clampTK-81-0010 | 4 |
