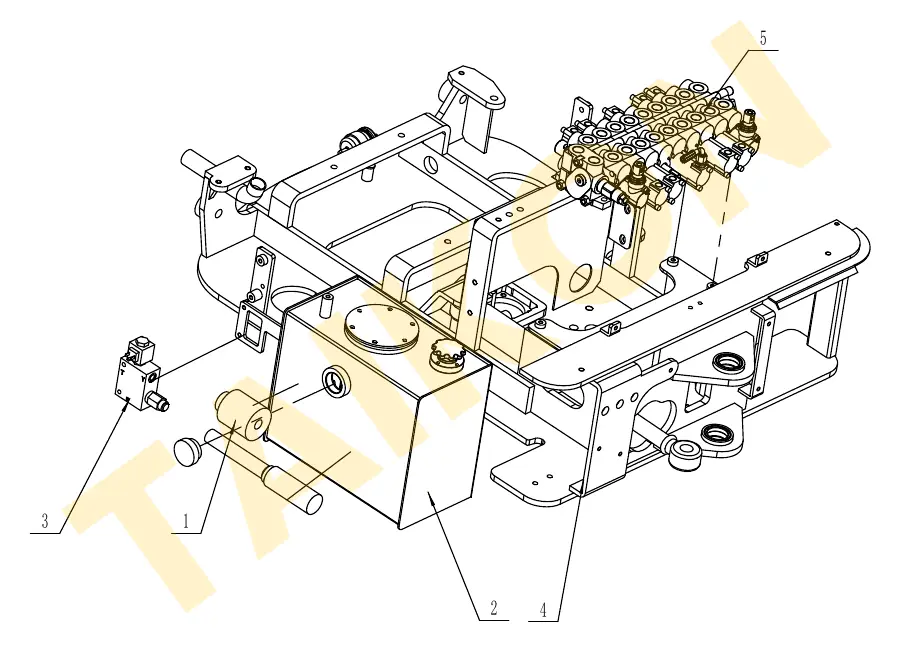

Hydraulic tank – overview
1.06.0 · TAIKON KT16 Pro · 7 items
Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Hydraulic tank – installation kitTK-90-0105 | 1 | |
| 2 | Hydraulic filter elements – installation kitTK-90-0106 | 1 | |
| 3 | Return line flange – installation kitTK-90-0107 | 1 | |
| 4 | Main control valve – installation kitTK-90-0108 | 1 | |
| 5 | Pilot supply valve – installation kitTK-90-0109 | 1 | |
| 6 | Swing motor – installation kitTK-90-0110 | 1 | |
| 7 | Pressure filter – installation kitTK-90-0111 | 1 |
