Boom swing bracket
2.01 · TAIKON C10 · 9 items

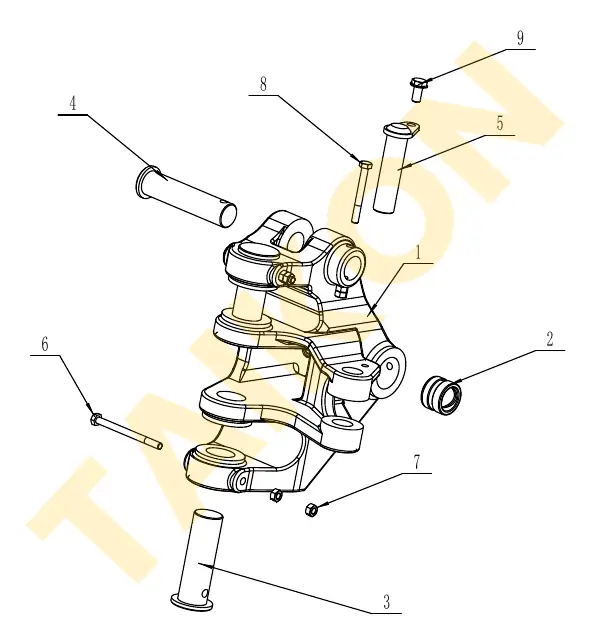

Tap a number on the drawing to find the part in the list.
| Pos. | Description / Part no. | Qty | |
|---|---|---|---|
| 1 | Boom swing bracketTK-51-0007 | 1 | |
| 2 | BushingTK-52-0019 | 2 | |
| 3 | Pin 1TK-52-0020 | 2 | |
| 4 | Pin 2TK-52-0021 | 1 | |
| 5 | Pin 3TK-52-0022 | 1 | |
| 6 | Hexagon head bolt M8×100TK-81-0042 | 2 | |
| 7 | Nut M8TK-81-0036 | 6 | |
| 8 | Hexagon head bolt M8×70TK-81-0043 | 1 | |
| 9 | Hexagon flange bolt M10×20TK-81-0039 | 1 |
